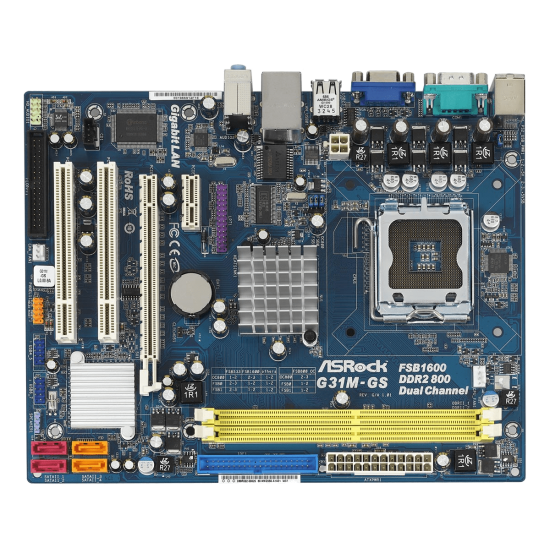

ASRock G31M-GS MainBoard with Intel Celeron E3200 CPU + heatsink and 2GB of RAM on board

ASRock G31M-GS MainBoard with Intel Celeron E3200 CPU + heatsink and 2GB of RAM on board

LGA 775 for Intel Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron® Dual Core / Celeron, support Penryn Quad Core Yorkfield and Dual Core Wolfdale processor
- Compatible with all FSB 1600*/1333/1066/800 MHz CPUs
- Hyper Threading Technology Support
- Supports "untied" overclocking technology
- EM64T CPU Support

Northbridge: Intel® G31
- Southbridge: Intel® ICH7

Dual Channel DDR2 memory technology
- 2 x DDR2 DIMM slot
- Supports DDR2 800/667 non-ECC, bufferless memory
- Maximum system memory capacity: 8GB*.

- Smart BIOS supported- Supports SMBIOS 2.3.1
- Supports jumperfree
- Compatible with ACPI 1.1 wake up events
- Supports "Plug and Play"
- AMI Legal BIOS
4Mb AMI BIOS

Intel® Graphics Media Accelerator 3100
- Pixel Shader 2.0, DirectX 9.0
- Maximum shared memory 384MB
- Supports D-Sub with maximum resolution up to 2048x1536 @ 60Hz

5.1 CH Windows® Vista™ Premium Level HD Audio (Audio Codec ALC662)

1 x PCI Express x16 Accommodation
- 1 x PCI Express x1 housing
- 2 x PCI Housings

4 x SATA2 3.0 Go/s connectors (Does not support RAID and Hot Plug functions)
- 1 x ATA100 IDE connectors (supports up to 2 IDE devices)
- 1 x Floppy door
- 1 x printer holder collector
- CPU/Chassis fan connector
- 24-pin ATX power supply manifold
- 4-pin ATX 12V connector
- internal audio connectors
- front panel audio connector
- 2 x USB 2.0 collector (supports 4 USB 2.0 ports)

I/O Panel
- 1 x PS/2 port for mouse
- 1 x PS/2 port for keyboard
- 1 x COM1 Port
- 1 x VGA port
- 4 x USB 2.0 ports already integrated
- 1 x RJ-45 LAN Ports
- HD Audio connector: line / front speaker / microphone input

Used but tested and 100% functional
