Latest wireless data transfer technology offers speeds up to 433 Mbps (5 GHz) and 150 Mbps (at 2.4 GHz), water and corrosion resistant, IP65 protection rating
Dual band operation (2.4 GHz and 5 GHz) provides double the bandwidth
Supports WEP and WPA/WPA2 data encryption (TKIP and AES)
Supports WMM (IEEE 802.11e QoS standard) giving priority to bandwidth for multimedia applications
Powerful 7 dBi, detachable antennas with RP-SMA female connector
Supported modes: Access Point, Router, Repeater and WISP (Wireless ISP)
Supports WPS (Wi-Fi Protected Setup) functionality
Includes passive POE injector for connections up to 60 metres away
Simple installation via the web interface
Firmware upgradeable
Standard
IEEE 802.11ac (433 Mbps Wireless LAN)
IEEE 802.11b (11 Mbps Wireless LAN)
IEEE 802.11g (54 Mbps Wireless LAN)
IEEE 802.11n (150 Mbps Wireless LAN)
IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)
General characteristics
LAN/WAN port: 1 RJ45 10/100 Mbps data input and power supply for passive PoE injector
Flash: 64 MB
Memory: 512 MB DDR2
Integrated VPN
Reset button
Ground connector (GND)
Wireless
Wireless Channels EU (ETSI): 1-13, US (FCC): 1-11
Modulation technologies:
- 11ac: 16QAM, 64QAM 128QAM 256QAM with OFDM
- 11g/n: BPSK, QPSK, 16QAM, 64QAM, OFDM
- 11b: DQPSK, DBPSK, DSSS, CCK
Wireless Security:
- Open
- WEP encryption (64/128 bit)
- WPA PSK
- WPA2 PSK
- Mixed WPA
Data transfer rate:
- IEEE 802.11b (11 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps)
- IEEE 802.11g (54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 9 Mbps, 6 Mbps)
- IEEE 802.11n (up to 150 Mbps)
- IEEE 802.11ac (up to 433 Mbps)
Maximum US output power transmission (FCC): 28 dBm
Maximum EU output power transmission (ETSI): 13 dBm
Antenna gain: 7 dBi
EIRP max output power (FCC): 35 dBm
EIRP max output power (ETSI): 20 dBm
Router
WAN connection types supported:
- Dynamic IP (DHCP for cable services)
- Static IP
- PPPoE (for DSL)
Power supply
External power supply: 24V DC, 0.5A
Power consumption: 7 watts max
LED
Power supply
WLAN/LAN Link/Act
WLAN on
WLAN Signal Strength
Physical information
Operating temperature: -30 - 70°C
Storage temperature: -40° - 70°C
Operating humidity: 10 - 90% non-condensing
Storage humidity: 10 - 90% non-condensing
Dimensions
Width: 55 mm
Height: 428 mm
Depth: 55 mm
Weight: 0.26 kg
Certifications
CE
FCC Class A
RoHS
WEEE
Package contents

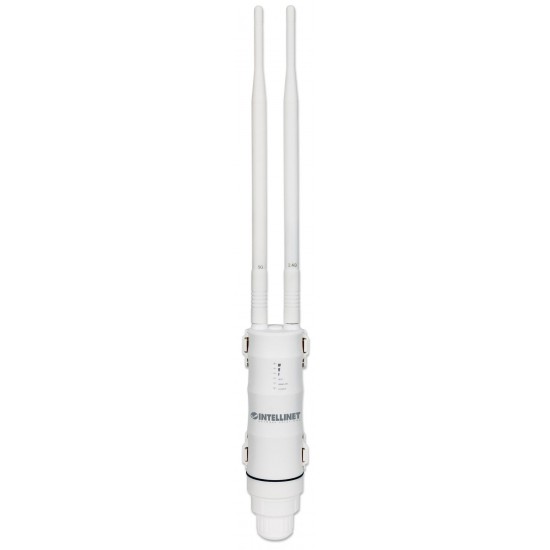

Wireless AC600 Outdoor High Power Repeater / Access Point Wireless AC600
2 Detachable external antennas
Rod fixing bracket
Quick installation guide
Cat5 RJ45 Ethernet network cable
Installation CD
Power supply
Passive PoE injector
2 Cable ties
Wall mounting kit
